Venair

شرکت اسپانیایی VENAIR از معدود تولیدکنندگان شیلنگهای سیلیکونی مخصوص صنایع دارویی (Platinum Cured) و صنایع غذایی (Peroxide Cured) میباشد. از جمله کاربردهای تیوب سیلیکونی میتوان به انتقال محلول و گاز، استفاده در پمپ پریستالتیک و دستگاه فیلینگ با قابلیت CIP/SIP و اتوکلاو اشاره نمود. انواع محصولات این شرکت شامل شیلنگهای تقویت نشده و همچنین تقویت شده با یک لایه، دولایه و چهار لایه الیاف پلی استر، تقویت شده با فنر و شیلنگهایی با قابلیت گرم و سرد کردن سیال میباشد که در انواع مختلف اتصالات شامل کلمپ، سر شیلنگی و مهره ماسوره قابل تحویل میباشد. لازم به ذکر است شیلنگهای این شرکت دارای تمام مدارک و تائیدیههای مورد نیاز در صنعت دارو من جمله Acc. to USP Class VI وFDA 21CFR 177.2600 میباشند. شرکت سیناراد کالا با بیش از 17 سال سابقه بعنوان نماینده انحصاری شرکت VENAIR اسپانیا، افتخار تامین انواع تیوب های سیلیکونی معتبرترین مجموعه های دارویی و تزریقی و بایوتک کشور را داراست. لازم به توضیح است این برند، قابل جایگزینی با کلیه تیوب های سیلیکونی مورد استفاده از برندهای Advantapure، coleparmer، watson marlowو … با اطلاعات فنی کاملا یکسان، کیفیت برابر و قیمت به مراتب مناسبتر میباشد. از جمله مزایای مهم این شرکت میتوان به انبارش اغلب محصولات شرکت VENAIR جهت تحویل سریع اشاره نمود.

انواع متداول شیلنگ های شرکت Venair به شرح ذیل قابل معرفی میباشد:

VENA®BIO FLOW MULTIPURPOS

This product is the workhorse for the majority of fluid management applications happening in manufacturing and filling plants.

Technical specification

Odorless, tasteless and completely non-toxic.
MATERIAL: Platinum cured silicone. Post cured to completely eliminate volatiles.
CLEAN ROOM: Manufactured inISO14644-1 Class 7.
Operational temperature ranges from -60ºC (-76ºF) to +180ºC (356ºF), it may reach up to +200ºC (392ºF) during short periods of time.
SMOOTHNESS: Reduces protein binding and biofilm formation.
LASER ETCHED: Traceable with reference, lot number and ID/OD.
DOUBLE BAG: Double bagged under vacuum.
ANIMAL FREE: Animal derived component free.
RADIOSTABLE: Gamma/eBeam sterilization available.
STERILIZATION: Dry heat, Autoclave, CIP, SIP, Ethylene oxide Hydrogen peroxide eBeam (25kGy) * Gamma (25kGy) *.
BIOCOMPATIBILITY: ADCF, P/BPA BSE/TSE, EU 10/2011, EU 1935/ 2004, BfR XV, 3A 18-03 EP 3.1.9., FDA 21CFR177.2600, USP 85, USP 87, USP 88, USP 381, USP 788, ISO 10993-4 ISO 10993-5, ISO 10993-6, ISO 10993-10, ISO 10993-11, Extractables

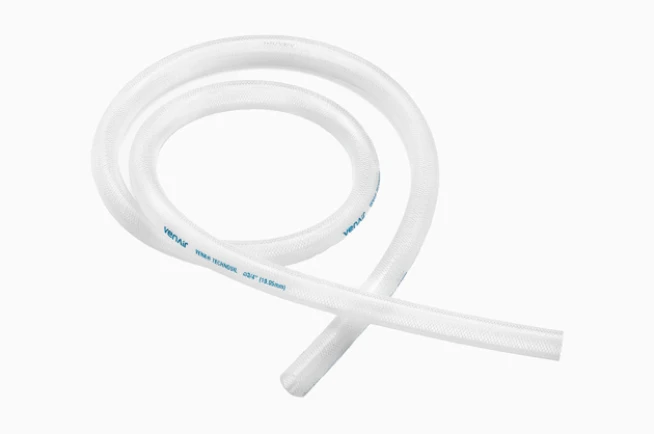

VENA®BIO BRAIDE

This product is braided once using a polyester yarn and a silicone layer between them. This provides moderate pressure resistance and a maximum of 180˚C

Technical specification

Odorless, tasteless and completely non-toxic.
MATERIAL: Platinum cured silicone. Post cured to completely eliminate volatiles.
CLEAN ROOM: Manufactured inISO14644-1 Class 7.
Operational temperature ranges from -60ºC (-76ºF) to +180ºC (356ºF), it may reach up to +200ºC (392ºF) during short periods of time.
SMOOTHNESS: Reduces protein binding and biofilm formation.
LASER ETCHED: Traceable with reference, lot number and ID/OD.
DOUBLE BAG: Double bagged under vacuum.
ANIMAL FREE: Animal derived component free.
RADIOSTABLE: Gamma/eBeam sterilization available.
STERILIZATION: Dry heat, Autoclave, CIP, SIP, Ethylene oxide Hydrogen peroxide eBeam (25kGy) * Gamma (25kGy) *.
BIOCOMPATIBILITY: ADCF, P/BPA BSE/TSE, EU 10/2011, EU 1935/ 2004, BfR XV, 3A 18-03 EP 3.1.9., FDA 21CFR177.2600, USP 85, USP 87, USP 88, USP 381, USP 788, ISO 10993-4 ISO 10993-5, ISO 10993-6, ISO 10993-10, ISO 10993-11, Extractables

VENABIO® BRAIDED DOUBLE BRAIDED

This product is braided twice using a polyester yarn and a silicone layer between them. This provides moderate pressure resistance and a maximum of 180˚C.

Technical specification

Odorless, tasteless and completely non-toxic.
MATERIAL: Platinum cured silicone. Post cured to completely eliminate volatiles.
CLEAN ROOM: Manufactured inISO14644-1 Class 7.
Operational temperature ranges from -60ºC (-76ºF) to +180ºC (356ºF), it may reach up to +200ºC (392ºF) during short periods of time.
SMOOTHNESS: Reduces protein binding and biofilm formation.
LASER ETCHED: Traceable with reference, lot number and ID/OD.
DOUBLE BAG: Double bagged under vacuum.
ANIMAL FREE: Animal derived component free.
RADIOSTABLE: Gamma/eBeam sterilization available.
STERILIZATION: Dry heat, Autoclave, CIP, SIP, Ethylene oxide Hydrogen peroxide eBeam (25kGy) * Gamma (25kGy) *.
BIOCOMPATIBILITY: ADCF, P/BPA BSE/TSE, EU 10/2011, EU 1935/ 2004, BfR XV, 3A 18-03 EP 3.1.9., FDA 21CFR177.2600, USP 85, USP 87, USP 88, USP 381, USP 788, ISO 10993-4 ISO 10993-5, ISO 10993-6, ISO 10993-10, ISO 10993-11, Extractables

VENA® SIL 630

, This reference is manufactured with VMQ (Vinyl-Methyl quality) silicone and stainless-steel wire spring encased inside the hose. Can be equipped with 316L stainless steel fittings on each end with a roughness value of less than 0,8 µm (or 0,5 µm on request).

Technical specification

Odorless, tasteless and completely non-toxic.
MATERIAL: Platinum cured silicone. Post cured to completely eliminate volatiles.
CLEAN ROOM: Manufactured inISO14644-1 Class 7.
Operational temperature ranges from -60ºC (-76ºF) to +180ºC (356ºF), it may reach up to +200ºC (392ºF) during short periods of time.
SMOOTHNESS: Reduces protein binding and biofilm formation.
LASER ETCHED: Traceable with reference, lot number and ID/OD.
DOUBLE BAG: Double bagged under vacuum.
ANIMAL FREE: Animal derived component free.
RADIOSTABLE: Gamma/eBeam sterilization available.
STERILIZATION: Dry heat, Autoclave, CIP, SIP, Ethylene oxide Hydrogen peroxide eBeam (25kGy) * Gamma (25kGy) *.
BIOCOMPATIBILITY: ADCF, P/BPA BSE/TSE, EU 10/2011, EU 1935/ 2004, BfR XV, 3A 18-03 EP 3.1.9., FDA 21CFR177.2600, USP 85, USP 87, USP 88, USP 381, USP 788, ISO 10993-4 ISO 10993-5, ISO 10993-6, ISO 10993-10, ISO 10993-11, Extractables

VENA® SIL 640

This reference is manufactured with four polyester fabric reinforcements. Can be equipped with 316L stainless steel fittings on each end with a roughness value of less than 0,8 µm (or 0,5 µm on request).

Technical specification

Odorless, tasteless and completely non-toxic.
MATERIAL: Platinum cured silicone. Post cured to completely eliminate volatiles.
CLEAN ROOM: Manufactured inISO14644-1 Class 7.
Operational temperature ranges from -60ºC (-76ºF) to +180ºC (356ºF), it may reach up to +200ºC (392ºF) during short periods of time.
SMOOTHNESS: Reduces protein binding and biofilm formation.
LASER ETCHED: Traceable with reference, lot number and ID/OD.
DOUBLE BAG: Double bagged under vacuum.
ANIMAL FREE: Animal derived component free.
RADIOSTABLE: Gamma/eBeam sterilization available.
STERILIZATION: Dry heat, Autoclave, CIP, SIP, Ethylene oxide Hydrogen peroxide eBeam (25kGy) * Gamma (25kGy) *.
BIOCOMPATIBILITY: ADCF, P/BPA BSE/TSE, EU 10/2011, EU 1935/ 2004, BfR XV, 3A 18-03 EP 3.1.9., FDA 21CFR177.2600, USP 85, USP 87, USP 88, USP 381, USP 788, ISO 10993-4 ISO 10993-5, ISO 10993-6, ISO 10993-10, ISO 10993-11, Extractables

VENA® SIL 650V

, This reference is manufactured with three polyester fabric reinforcements and a stainless steel wire spring, everything encased inside the hose. Can be equipped with 316L stainless steel fittings on each end with a roughness value of less than 0.8 µm (or 0.5 µm on request).

Technical specification

Odorless, tasteless and completely non-toxic.
MATERIAL: Platinum cured silicone. Post cured to completely eliminate volatiles.
CLEAN ROOM: Manufactured inISO14644-1 Class 7.
Operational temperature ranges from -60ºC (-76ºF) to +180ºC (356ºF), it may reach up to +200ºC (392ºF) during short periods of time.
SMOOTHNESS: Reduces protein binding and biofilm formation.
LASER ETCHED: Traceable with reference, lot number and ID/OD.
DOUBLE BAG: Double bagged under vacuum.
ANIMAL FREE: Animal derived component free.
RADIOSTABLE: Gamma/eBeam sterilization available.
STERILIZATION: Dry heat, Autoclave, CIP, SIP, Ethylene oxide Hydrogen peroxide eBeam (25kGy) * Gamma (25kGy) *.
BIOCOMPATIBILITY: ADCF, P/BPA BSE/TSE, EU 10/2011, EU 1935/ 2004, BfR XV, 3A 18-03 EP 3.1.9., FDA 21CFR177.2600, USP 85, USP 87, USP 88, USP 381, USP 788, ISO 10993-4 ISO 10993-5, ISO 10993-6, ISO 10993-10, ISO 10993-11, Extractables
